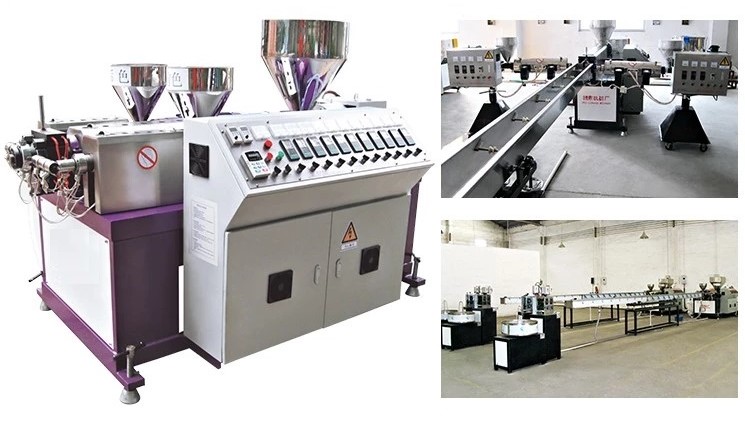

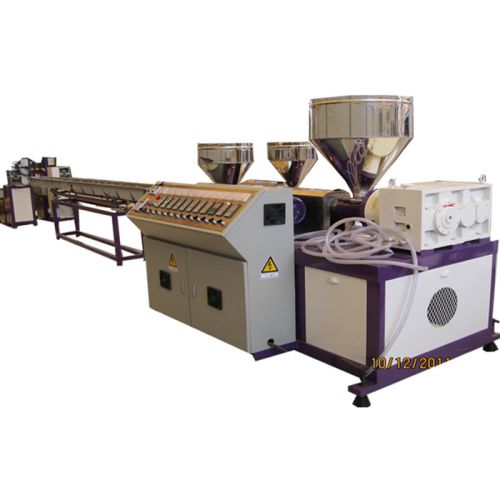

Three-Color Plastic Rattan Extruding Machine
Plastic Rattan Production Line
Plastic rattan extrusion line can produce single or multiple color plastic rattan equipped with one or more extruders,
and also different shape rattan can be produced if different extrusion moulds are used. Including round rattan,
flat rattan, embossing rattan, artificial rattan as well as colorful rattan. Plastic rattan is widely used on a rattan chair,
tea table, flower basket, weaving art and craft, furniture, etc. Preferring different raw materials such as PE, PP, PVC, etc.
The extrusion line can produce plastic resembling a rattan with differing texture.
| Condition | New |
| Plastic Processed | PE, PP, PVC, EVA |
| Output (kg/h) | 30 – 50 kg/h |
| Screw Design | Single-screw |
| Screw diameter (mm) | 55 mm |
| Screw L/D Ratio | 28:01:00 |
| Voltage | 220/380V, 50 Hz |
| Dimension(L*W*H) | 13000mm*3500mm*3000mm |
| Power (kW) | 25 |
| Weight | 2 tons |
| Warranty | 1 YEAR |
Model: 3-color plastic rattan extruding machine |
||||
| Item | Unit | part(s) | number | Description |
| 1 | Three-in-one extruder | Main extruder screw & barrel | 1 set | Ø65; L/D:28:1, substrate: 38CrMoAlA, nitriding |
| Sub-extruder screw & barrel | 2 sets | Ø35 ; L/D:25:1, substrate:38CrMoAlA, nitriding | ||
| Main gearbox | 1 set | oblique gear, hardening, polished | ||
| Main Motor | 1 set | 18.5kW, frequency varying | ||
| Sub-motor | 1 set | 3kw | ||
| Hopper & Fan Cover | 1 each | stainless steel | ||
| 2 | Cooling bath | 1 set | length:6m, stainless steel | |
| 3 | Drawing & Take-up unit | 1 set | drawing motor:1.5kW, take-up motor:0.75 kW, both frequency varying | |
| 4 | Panel | 1 set | 11 zone temperature control, 7 air cooling | |
Product Detailed Pictures

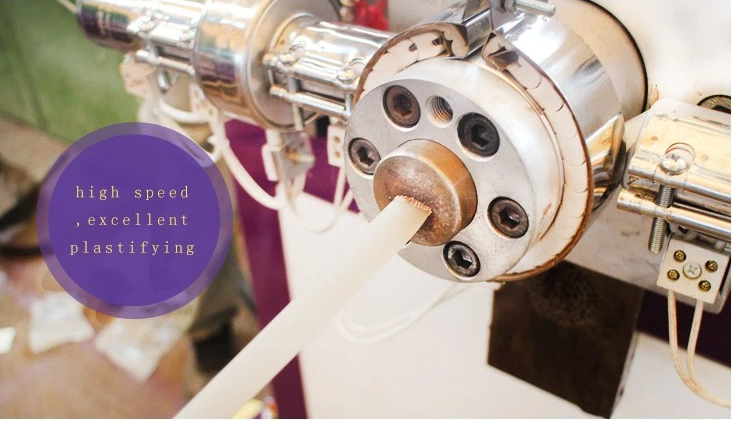

1. Extruder+die
Fine steel, many ways of processing, quality assurance
2. Cooling tank
304 stainless steel, anti-rust, anti-corrosion

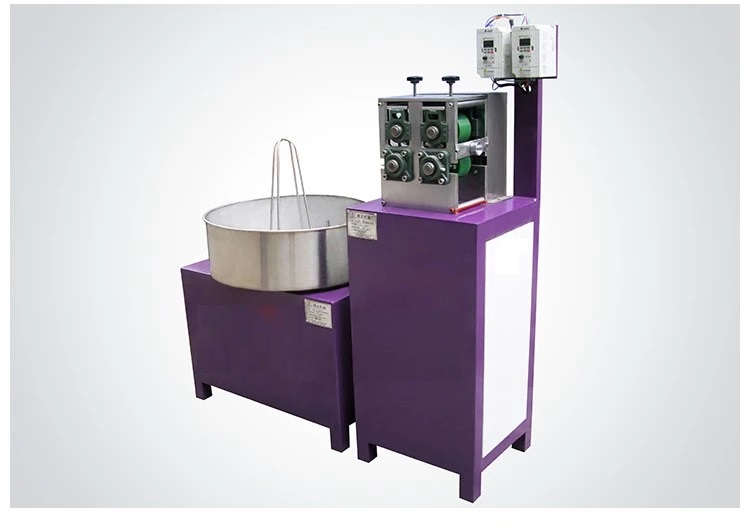

3. 3.Take-up and take-off units
with a reducer, can emboss strips.
Friendly design, operating safety assurance, automatic changing plates
Advantages of this Machine

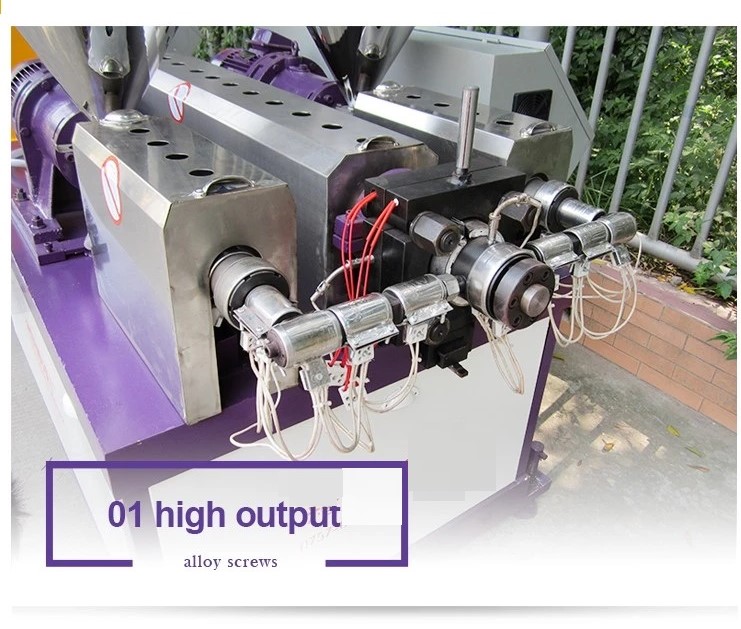

1. High Output
With optimized alloy screws, we can improve the output of PP/PE/PVC extruding.

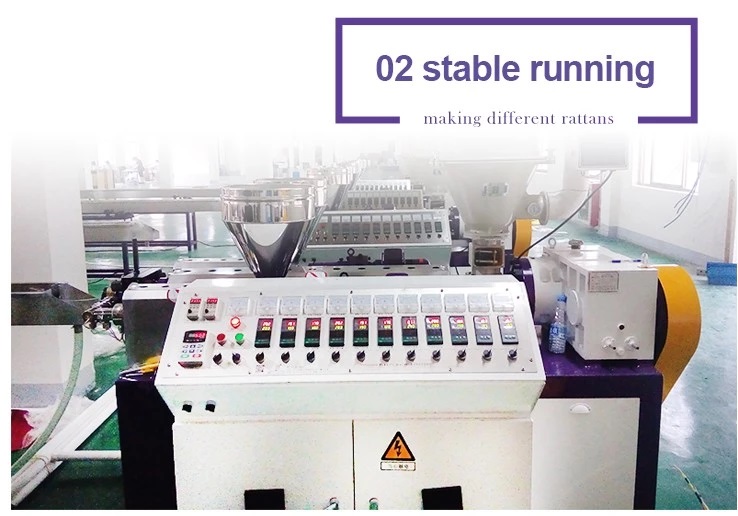

2.Stable running
We use specialized inverter controller which with step-less speed conversion. Additionally,
if using some auxiliary machines or some different control ways,
we can make many different rattans.

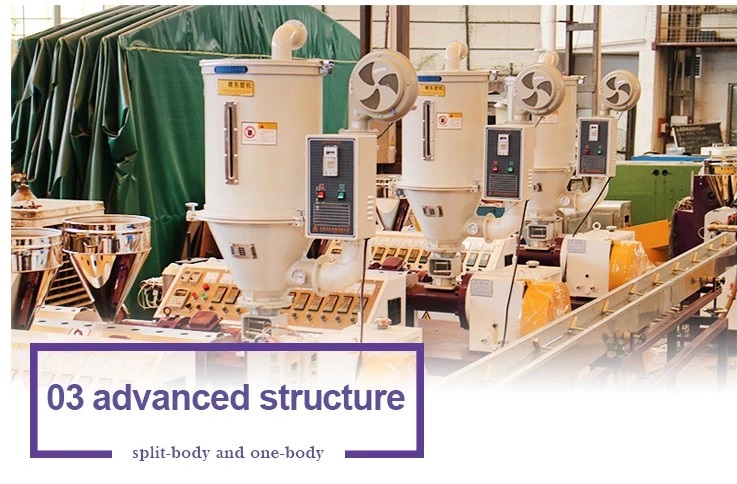

3. Advanced Structure
need that raw materials are complex.
