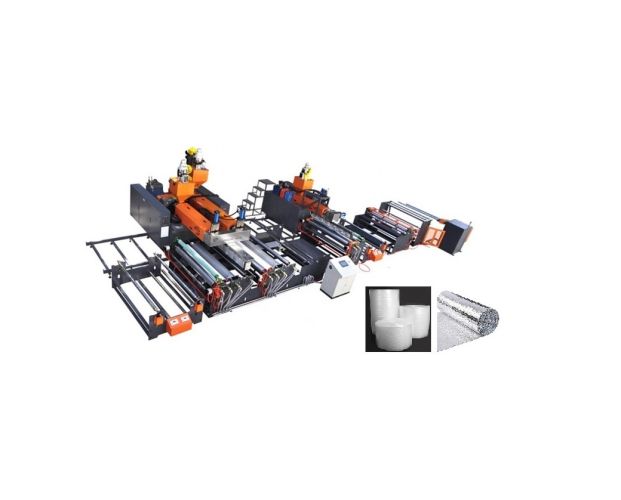

Multi-Layer Double Screw Air Bubble Film Wrap Sheet Making Machine

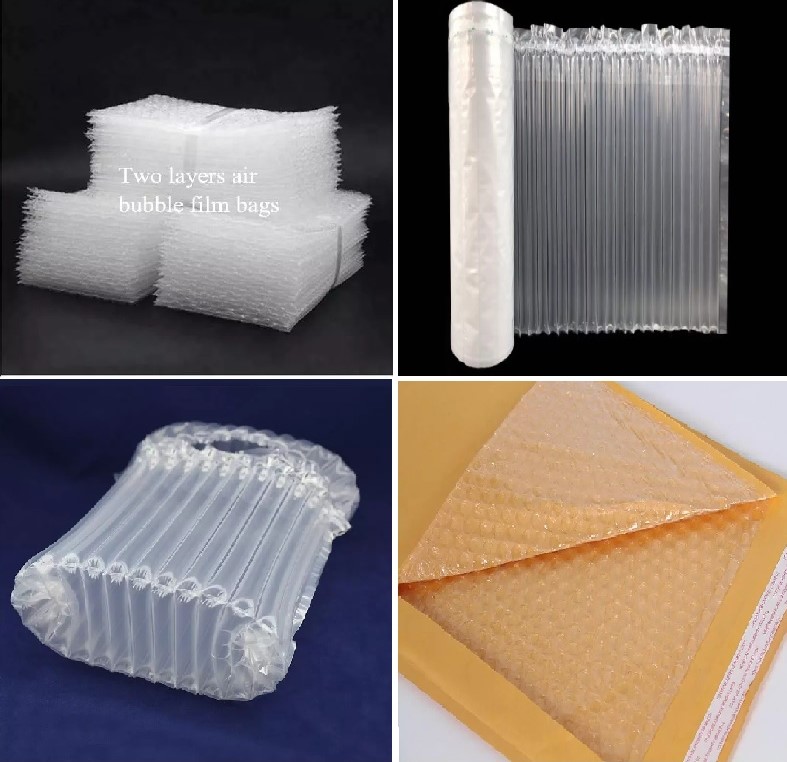

Air bubble film wrap is a flexible packaging and cushioning material made of a polymeric film comprising of small air pockets. Bubble wrap which protects items during shipping and for storage are generally available in different types and sizes. This depends on the size of the object being packed, as well as the level of cushioning protection needed. It offers the most cost-effective protection for all your basic packaging needs. Air bubble film wrap is manufactured using the right proportion of special polymers to provide assured protection to the product throughout its life span.
Production Process
Machine Parameters
| Film width (mm) | 1200 | 1600 | 2000 | 2600 | 3000 |
| Line speed (m/hr) | 600 – 2100 | 600 – 2100 | 600 – 2100 | 600 – 2100 | 600 – 2100 |
| Capacity (kg/hr) | 85 – 140 | 100 – 170 | 125 – 200 | 145 – 220 | 180 – 260 |
| Film weight (g/m2) | 38 – 300 | 38 – 300 | 40 – 300 | 45 – 300 | 45 – 300 |
| Main screw Diameter (mm) | Φ65 * 2 | Φ65* 2 | Φ75* 2 | Φ80* 2 | Φ90* 2 |
| Sub screw Diameter (mm) | Φ45 | Φ65 | Φ65 | Φ75 | Φ80 |
| Heating Power (kw) | 82 | 104 | 136 | 155 | 180 |
| Operation Power (kw) | 40 | 51 | 66 | 75 | 86 |
| Installation Power (kw) | 122 | 146 | 201 | 245 | 298 |
| Dimension L×W×H (m) | 10 x 5.5 x 2.5 | 10 x 6.5 x 2.5 | 11 x 7.0 x 2.5 | 12 x 8.0 x 2.5 | 12 x 8.7 x 2.5 |
| Weight (kg) | 5500 | 6200 | 7500 | 9500 | 12000 |
Here, we take a five-layer air bubble film machine as an example

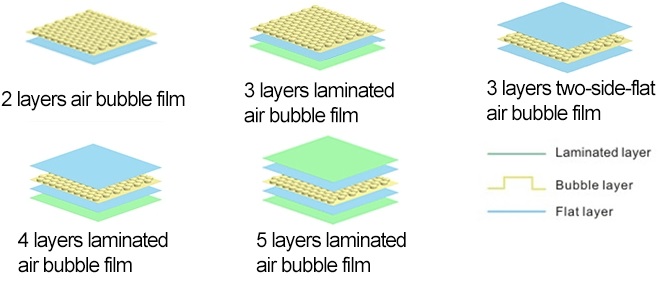

This multi-layer machine can produce
• 2 layers air bubble film,
• 3 layers two-side-flat air bubble film,
• 3 layers of laminated, 4 layers laminated, and
• 5 layers of laminated air bubble film.
As for the lamination material, it includes
• PE coated aluminum foil,
• PE coated Kraft paper,
• PE film,
• PE foam,
• PE coated anti-static film,
• PE coated non-woven fabric and other PE coated materials to air bubble film.
You Could Use Multi-Layer Single Screw Air Bubble Film Machine to Produce:
A full set of the machine includes
. One single-screw main extrusion set.
· One single-screw sub extrusion set.
· One air bubble film-forming roller (air bubble shape and size can be customized).
· One set of air bubble film-forming frame with vertical dividers.
· Two automatic raw material feeders, reducing labor cost.
· One roll winding system, with a fixed-length meter control and a smart alarm.

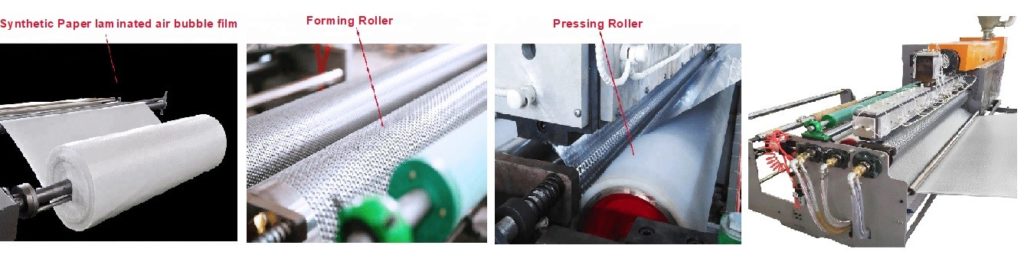

Manufacture Process
Optional upgrades:

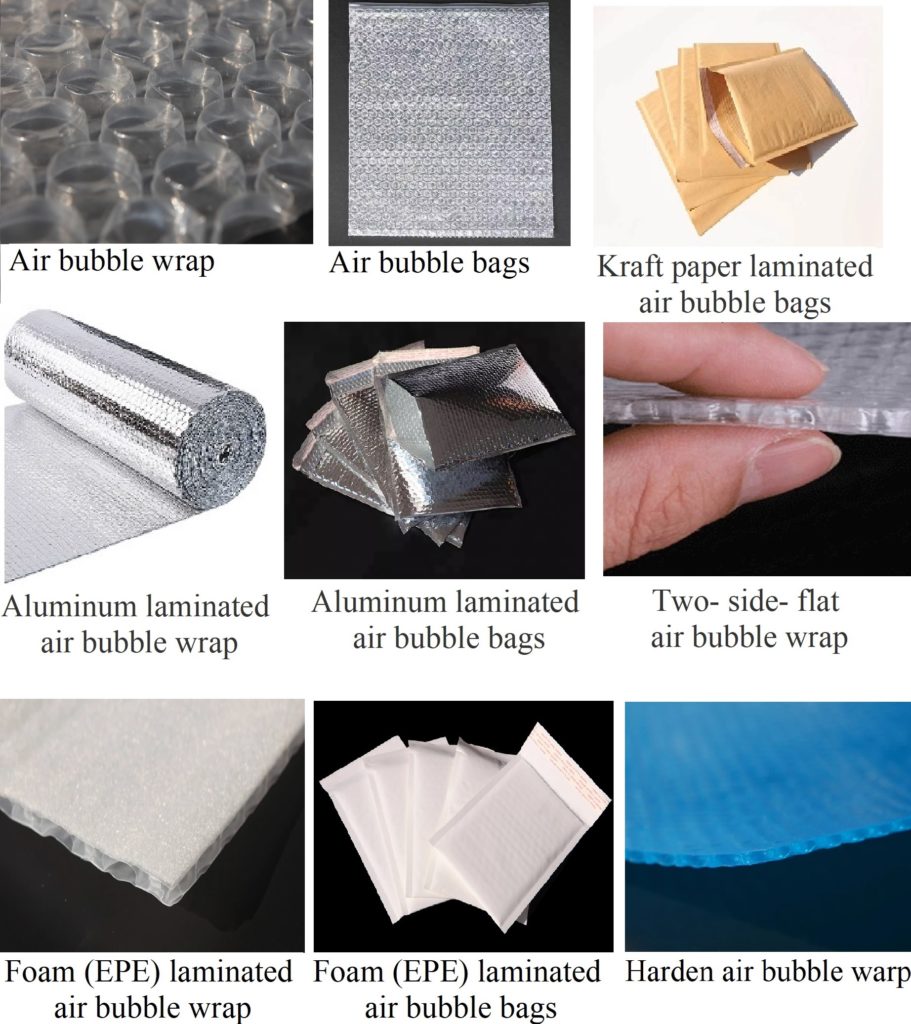

Finished Products
